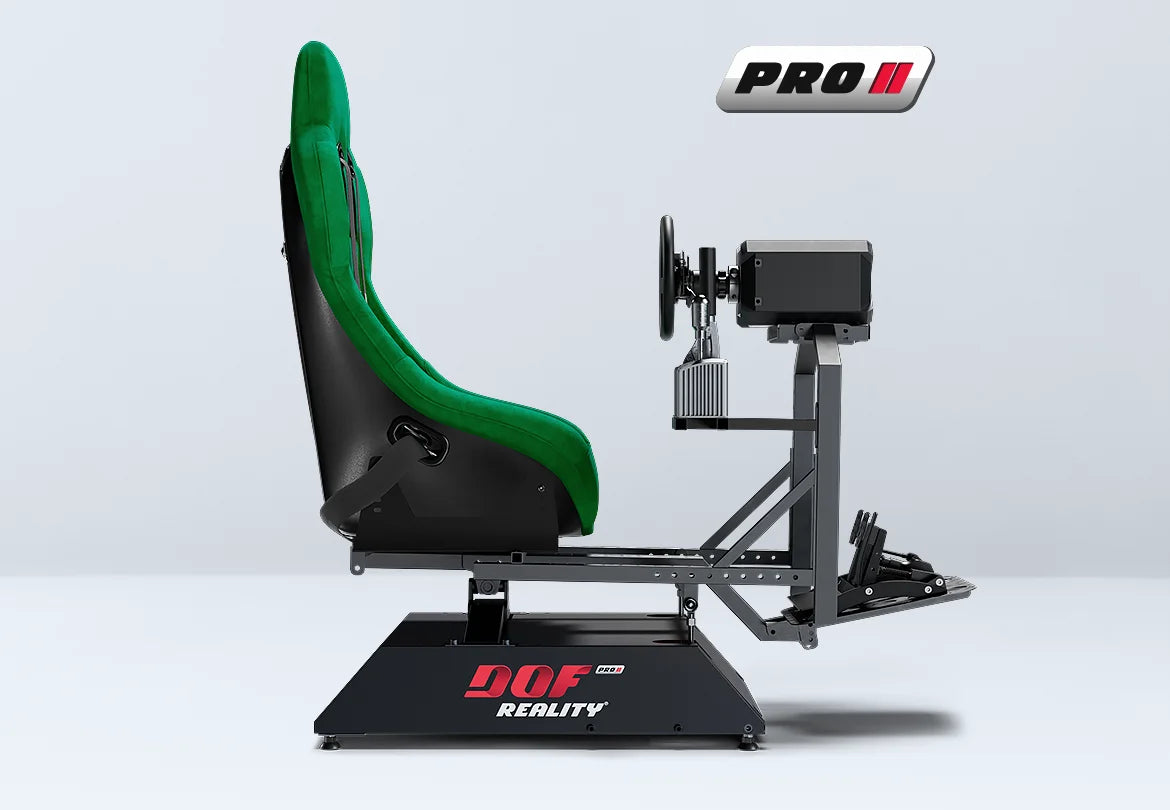

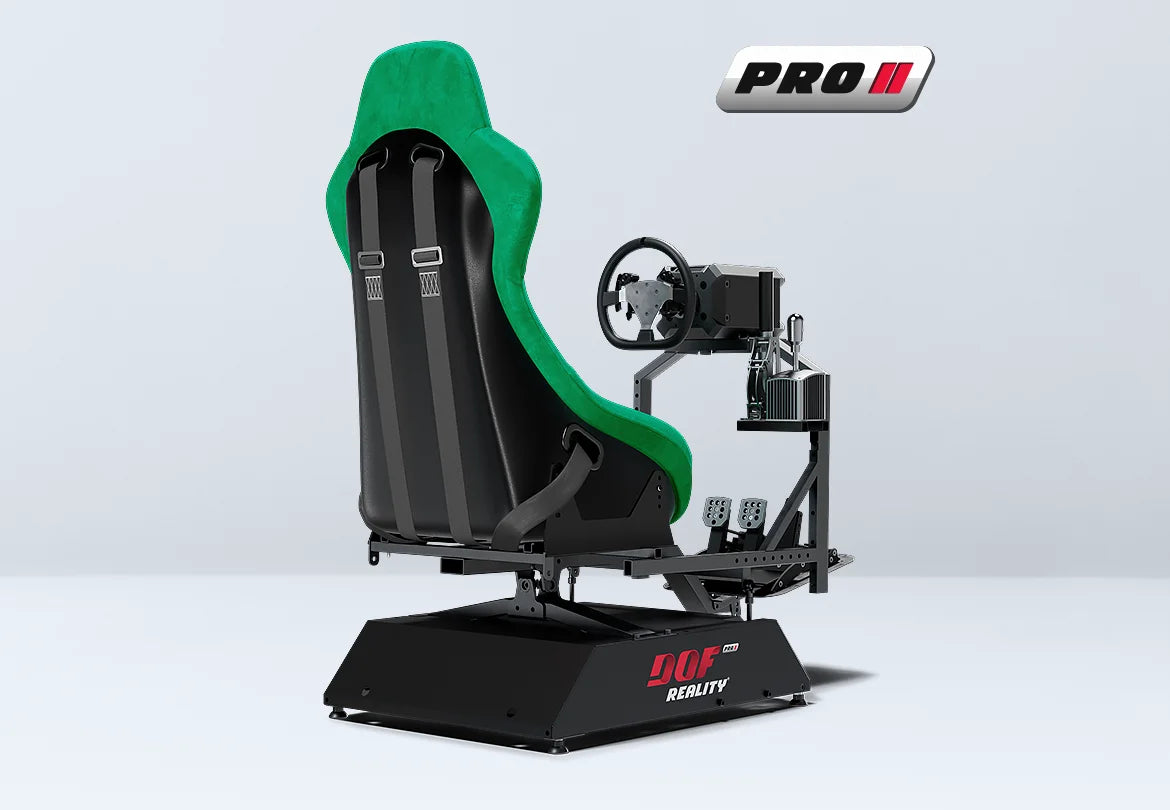

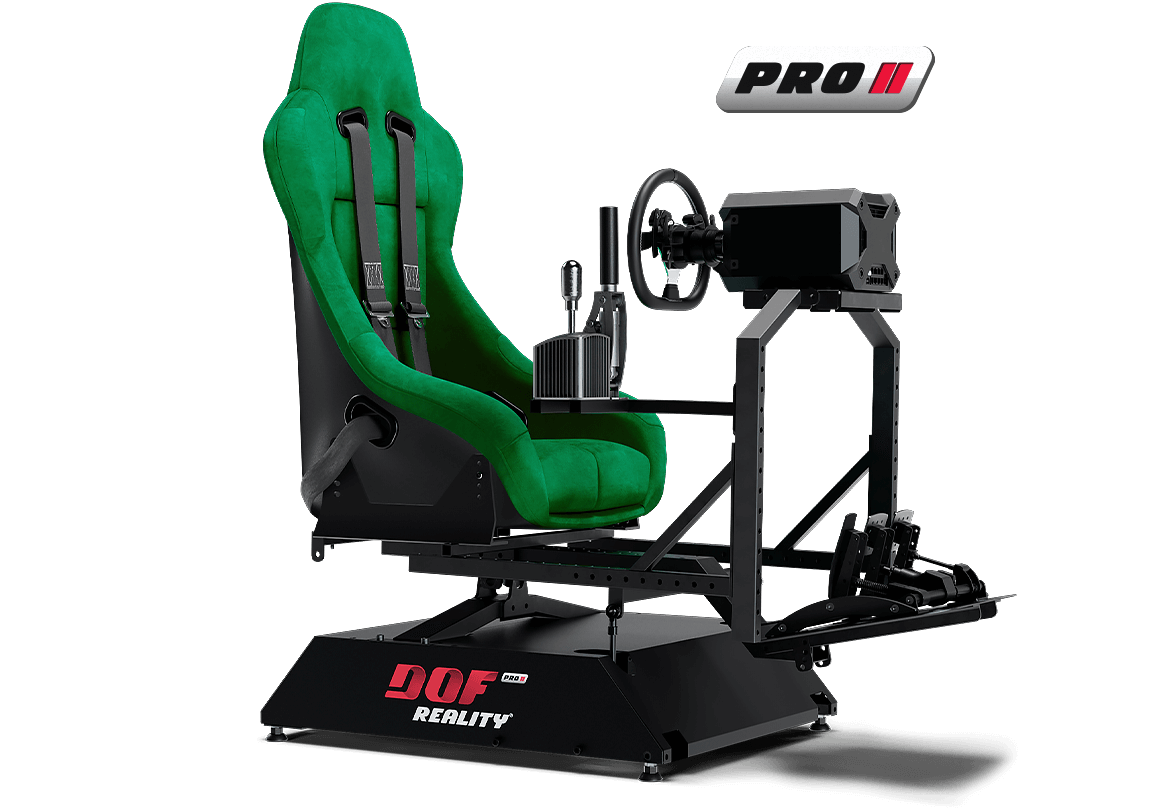

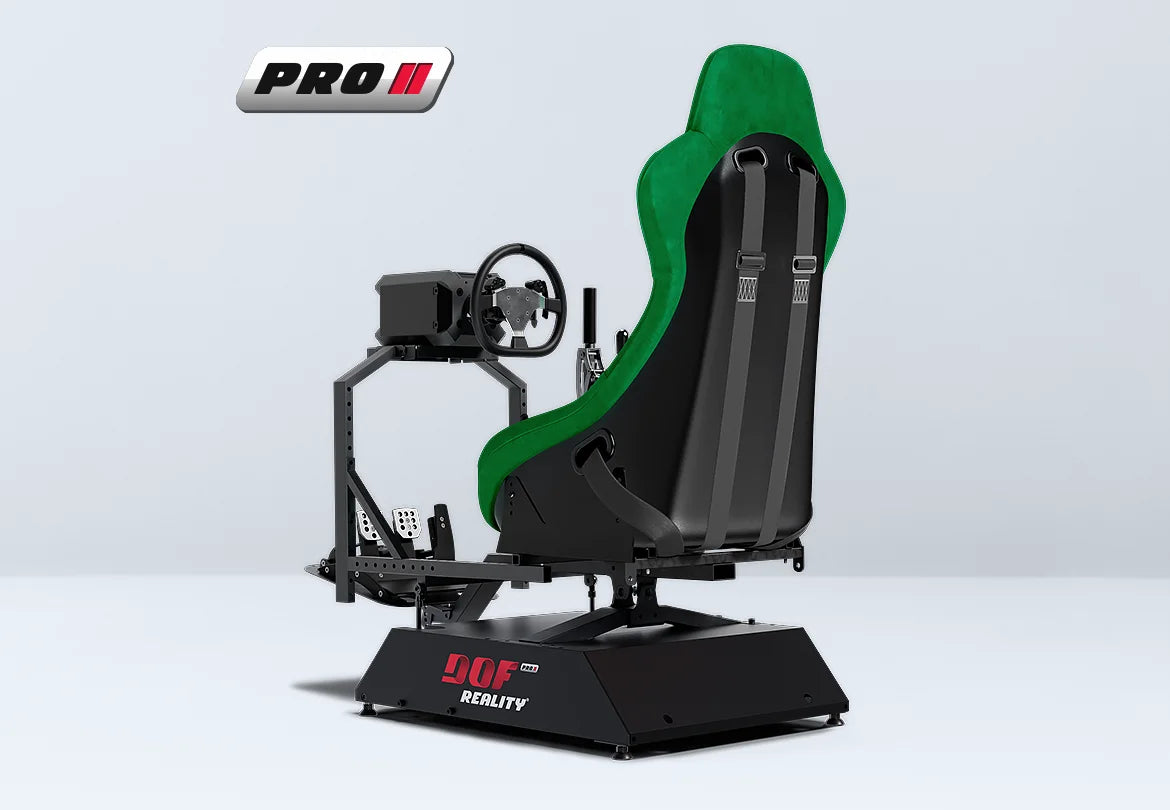

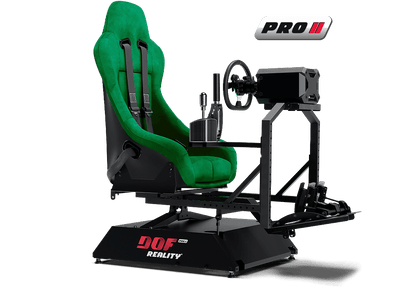

2-Axis-Pro (P2) Racing/Flying Motion Simulator Platform - DOF Reality
2-Axis-Pro (P2) Racing/Flying Motion Simulator Platform - DOF Reality
Couldn't load pickup availability
Description
For those seeking one of the most immersive and high-performance racing simulators available, the DOF Reality Pro 2 is engineered for serious enthusiasts and professional drivers alike. Engineered for serious enthusiasts and professional drivers alike, this advanced motion platform features true 2 Degrees of Freedom, allowing for lifelike simulation of pitch and roll.
Since 2014, DOF Reality has led the industry in developing affordable, cutting-edge motion simulators. The Pro 2 continues this legacy with a robust build, ergonomic design, and exceptional attention to motion accuracy.
The entire system is built for full-body movement—seat, wheel, pedals, monitor, and joystick all move together (accessories sold separately)—delivering authentic G-force feedback through muscle pressure points. With separate front and rear roll centers, the Pro 2 captures complex driving physics like understeer, oversteer, and traction loss more precisely than any other platform in its class.
Designed to future-proof your racing setup, the Pro 2 is supported by a reliable warranty and 24/7 customer service, offering top-tier performance without compromising affordability.
Key Features
- True 2 Degrees of Freedom: pitch, roll
- Separate front and rear roll centers for realistic body roll and yaw simulation
- Accurately simulates understeer, oversteer, drifts, and traction loss
- Full-motion integration of seat, pedals, wheel, monitor, and joystick (components not included)
- G-force simulation through muscle pressure feedback for enhanced realism
- Powered by Sim Racing Studio software using real-time telemetry from supported games
- Simulates road texture, bumps, gear shifts, and collision impacts
- Ergonomic and durable design for comfort during extended sessions
- Ideal for home racing setups, simulation centers, and professional use
- Trusted brand with over a decade of innovation in motion simulation (since 2014)
- Includes motion platform, software, all necessary cables, warranty, and 24/7 support
What's Included

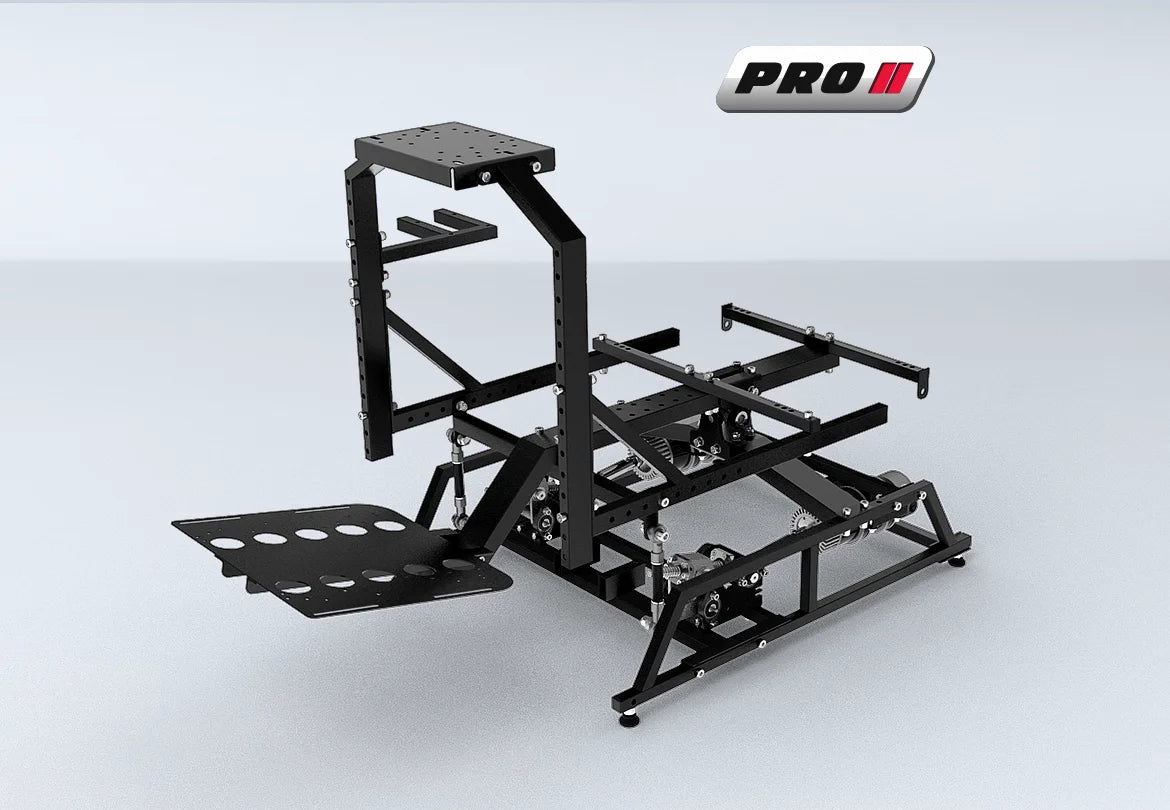

- rigid metal rig for normal & F1 pose
- mounts for seat or sliding rails
- integrated power drive motors
- 100-240 control unit with USB
- quick assembly tools
- 1 year full warranty
We sell only the plug-and-play motion platform, and customers will need to purchase their own seat, VR, and controllers (such as a wheel, pedals, and yoke). Our platform supports all of them.
We provide all necessary cables and motion software, but not the games. Our team is available to consult and help you choose the best components for your system via email support@greatarcadewarehouse.com
Characteristics

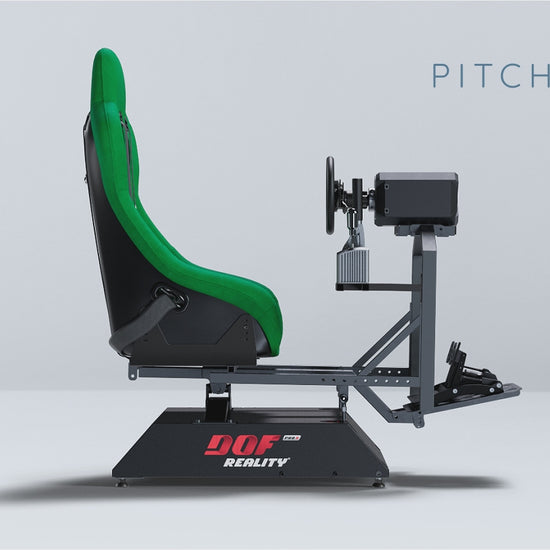

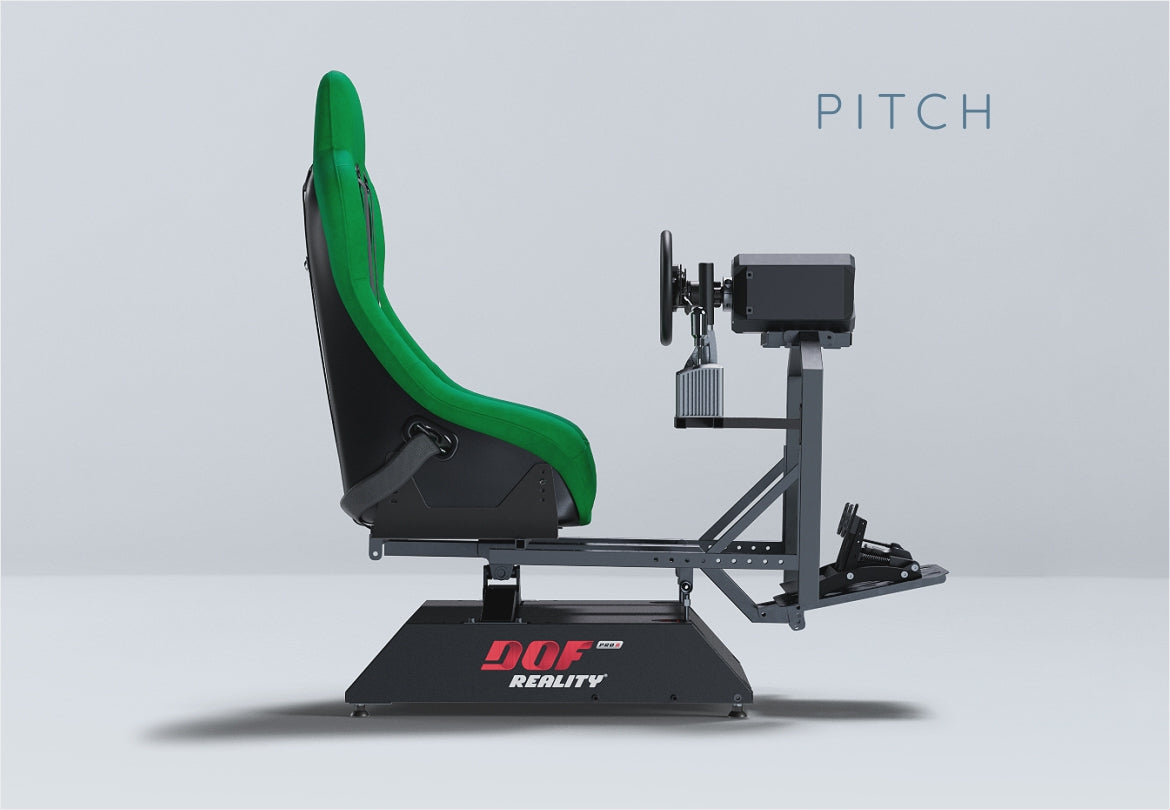

- Degrees of Freedom (Axis): 2DOF (Pitch, Roll)
- Range of Motion: 17°
- Speed: 50 cm/s (86°/s)
- Torque: 28 n/m
- Acceleration: 0.5G all directions
- Power Consumption: 1500 Watt (peak)
- Boxes Weight (Size): 1) 58.95kg (100 x 95 x 35cm) 2) 23.8kg (60 x 40 x 40cm)
- Floor Foot Print: 4×5, 2 ft H (120×150, 60 cm H)
- Material Type: Commercial grade metal profiles
- Supported Pilot Weight: 330 lbs / 150 kg
Add-Ons
- eBreak Stop Button - eBreak emergency stop button can be placed on the platform within close reach to stop any platform motions immediately. It is compatible with any platform model.
- MagicBox for PS/XBOX motion - With the MagicBox, a proxy Windows PC is no longer required. The MagicBox runs Sim Racing Studio directly and receives motion data from supported console games, allowing your DOF Reality platform to function without a computer. You can control Sim Racing Studio through your phone or tablet, making setup and adjustments simple and convenient. The MagicBox is only necessary if you plan to play console games exclusively and do not intend to use a PC. It is designed specifically for motion control and does not support other peripherals such as wheels, pedals, or additional controllers. Simply connect your DOF Reality motion platform to the MagicBox and enjoy immersive motion in your favorite console simulations.
- Cables Extension Set for 2-4 DOF Platforms - This cable set connects the control box to the motors. The included standard cables are 1.2 meters (4 feet) long and are sufficient for most common installations. Cable extension sets are only required if you choose to position the control box farther away from the motion platform.
- Transportation Wheels for 2 DOF Platforms - Enhance mobility with this heavy-duty front wheel kit, designed for quick and easy transport of your H2 or P2 motion simulator.
- Metal Cyber Cover - The Metal CyberCover is an enclosure designed to protect the lower moving parts of your motion platform.
- Protective Cover - To protect your machine, we also provide a flexible moving parts protection cover.
- Monitor Mount - We offer VESA standard (100mm x 100mm) mount for one monitor up to 33lbs (15kg). Make sure you have the SFU gearboxes and the latest(wide) wheel support vertical bars before ordering it.
- HOTAS Mounts Kit - Flight controls mount kit for HOTAS. It includes throttle and flight joystick mounts. Joystick can be mounted in the center or on the side.
- Pedals Quick Release - The Quick Release Add On makes it easy to switch between different pedal sets such as racing and flight pedals. It allows you to swap pedals quickly and securely without complicated adjustments, saving time when changing between simulation styles.
- HoneyComb A+B Adapter - This adapter allows the Honeycomb Alpha yoke and Bravo throttle to mount securely to our standard wheel plate.
- Buttkicker Mount - The Buttkicker Mount provides a secure mounting point to attach a Buttkicker transducer to your simulator frame for enhanced vibration feedback. This listing includes the mount only and does not include a Buttkicker unit.
Platform Configuration

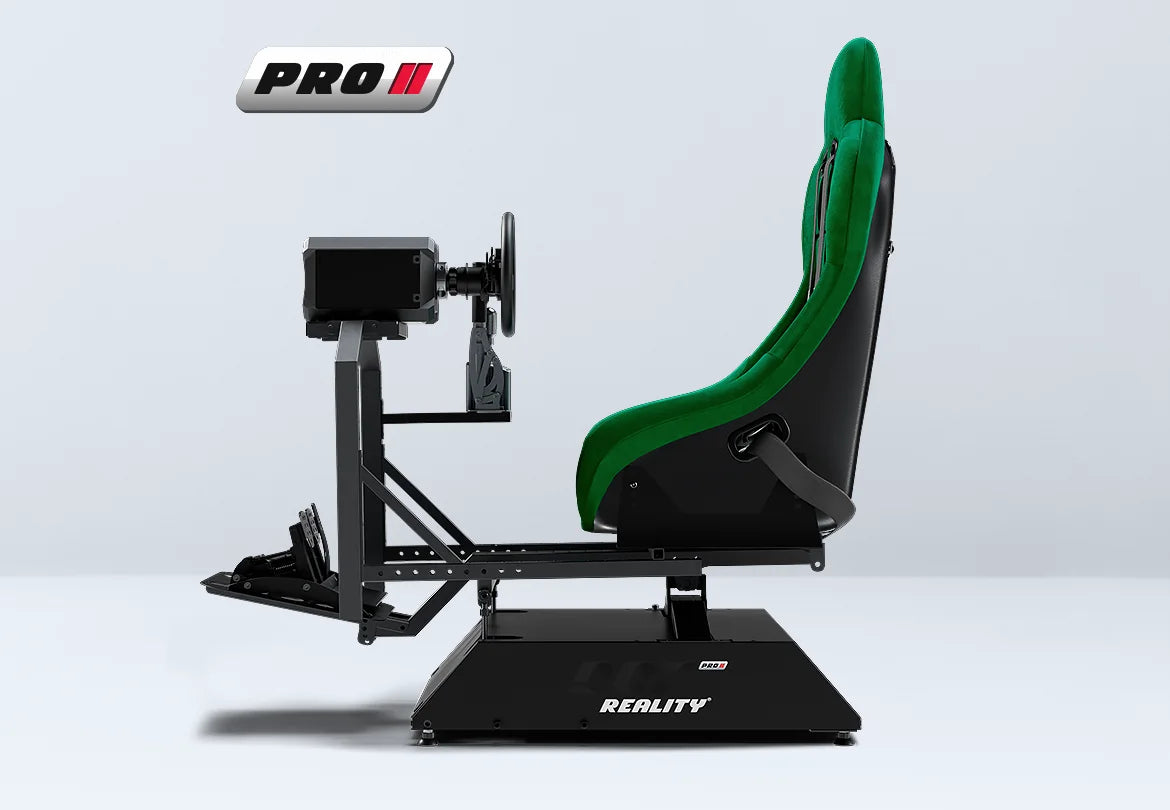

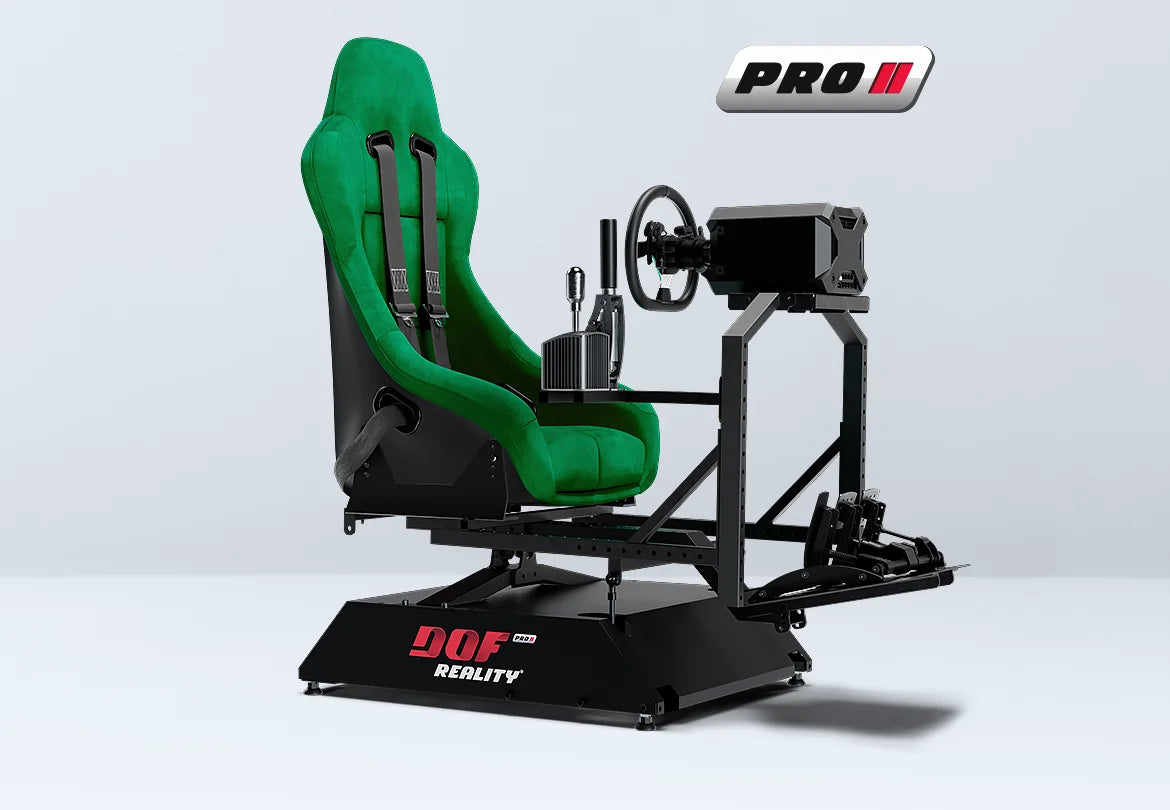

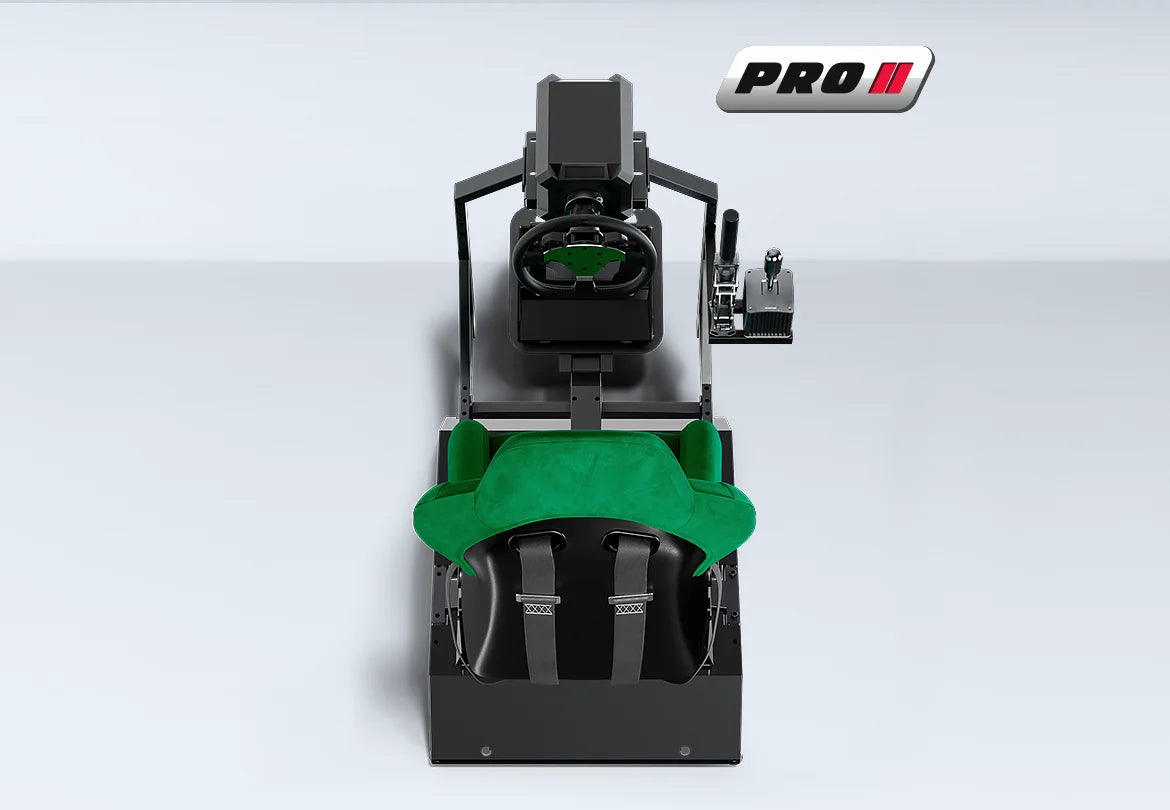

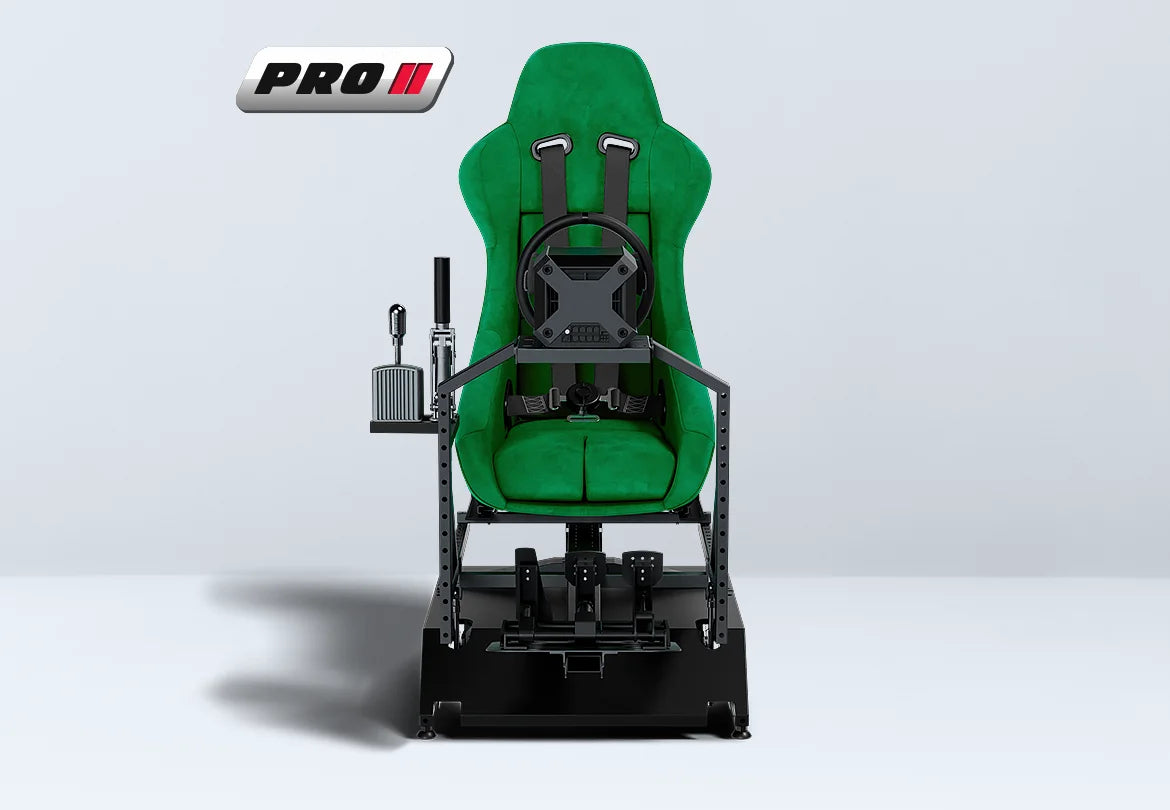

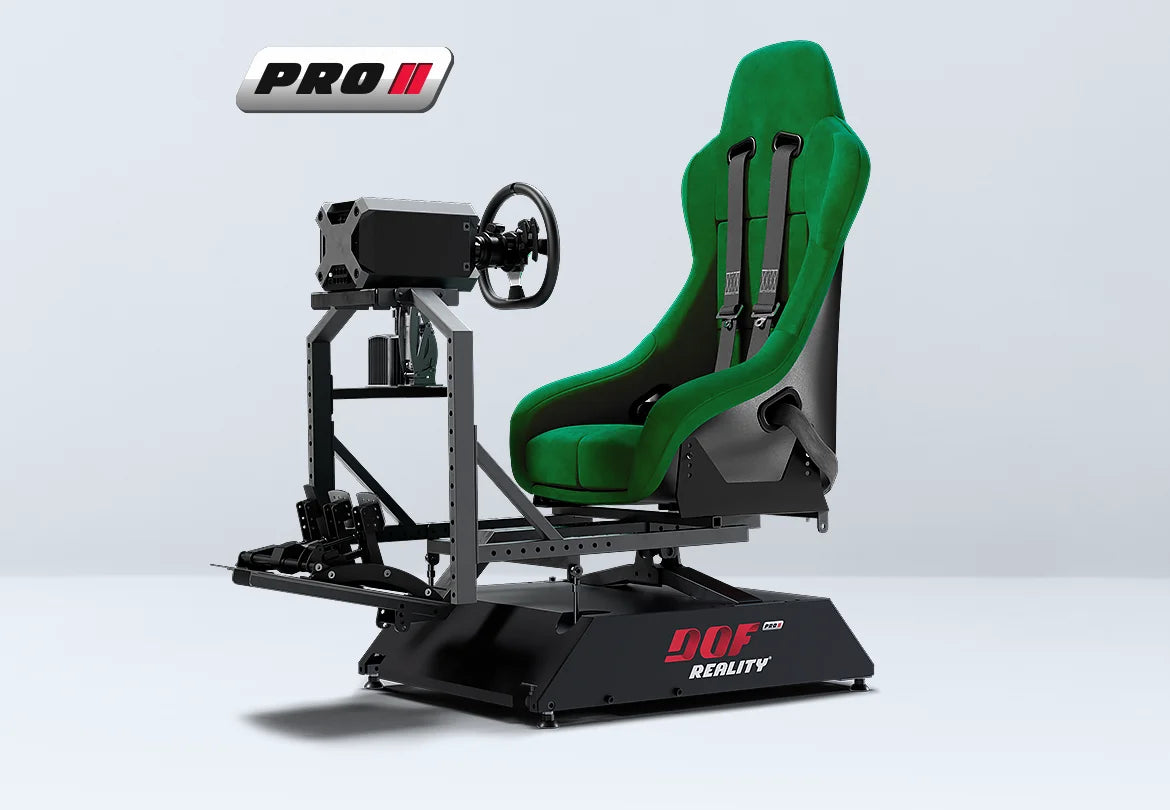

Racing Configuration
Optimized for aggressive acceleration, braking, and cornering forces. The motion profile is tuned to emphasize weight transfer and road surface feedback for a highly dynamic racing experience. Ideal for sim racers using steering wheels and pedal setups.

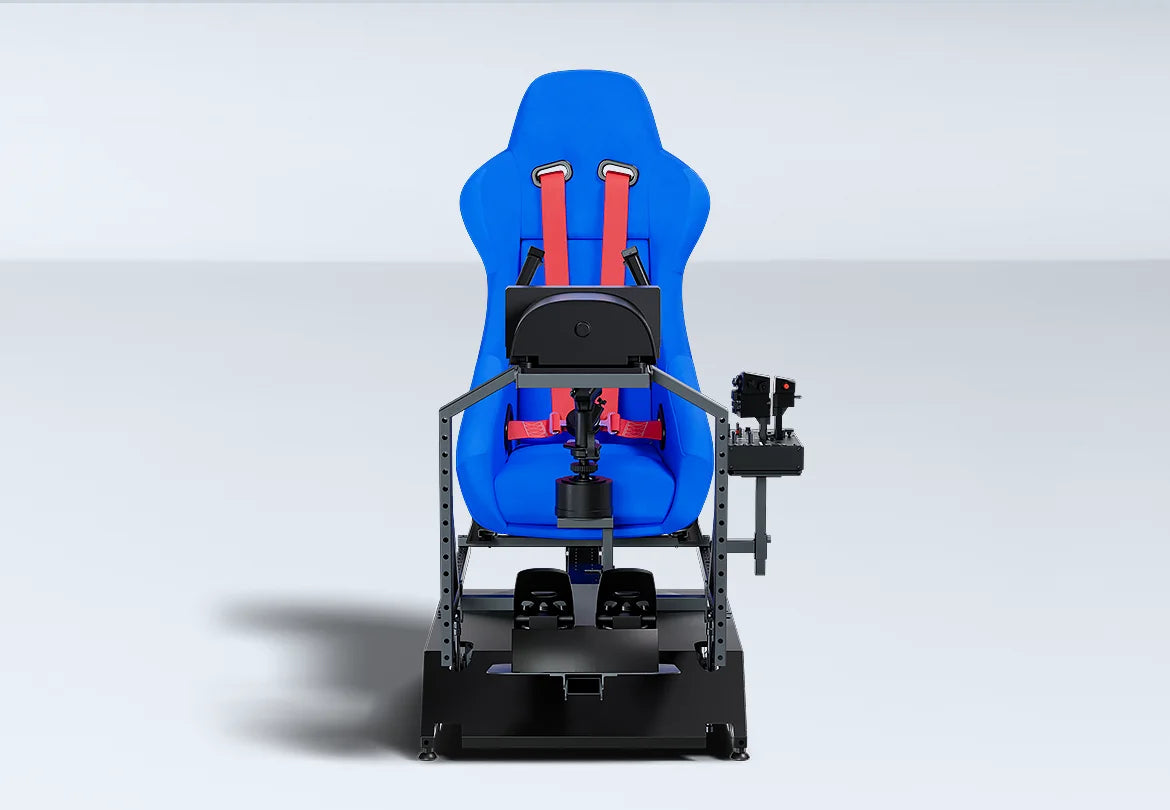

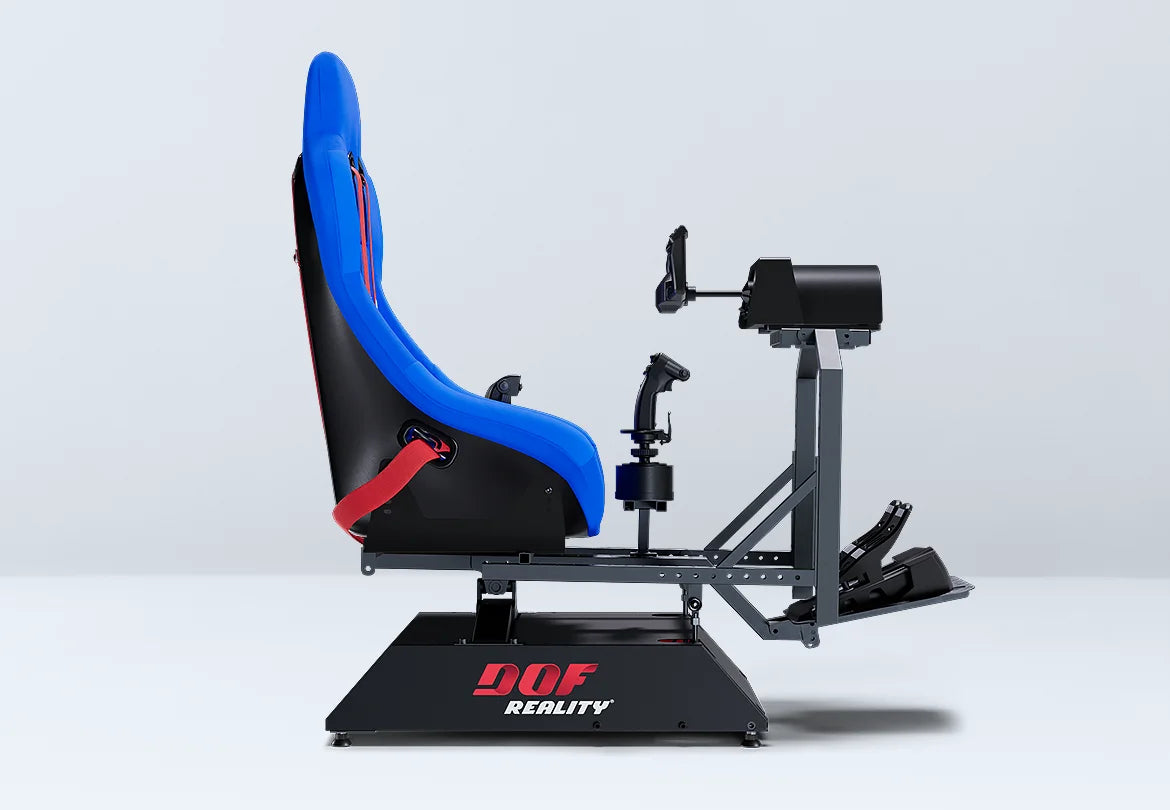

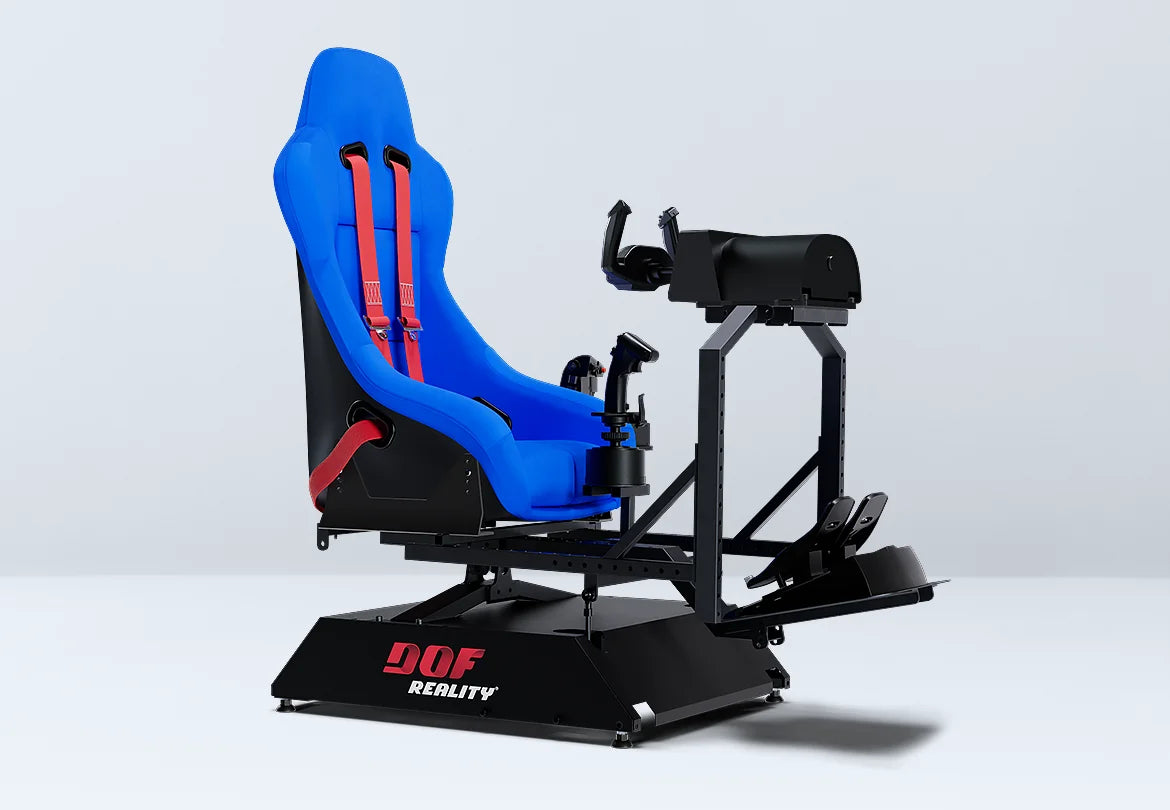

Flight Configuration
Tuned for smoother and more sustained motion, particularly during takeoff, landing, and banking. The motion profile delivers refined transitions suited for fixed-wing flight simulation setups using yokes or center sticks.
Both configurations use the same core motion platform. The difference lies in factory tuning and intended simulation focus.
Warranty
DOF Reality products include a manufacturer’s limited warranty, provided directly by DOF Reality, subject to their terms and eligibility requirements.
Warranty period:
12 months from the delivery date for defects in materials, design, or performance. Parts repaired or replaced under warranty carry a 6-month warranty from the date of repair or replacement.
What the warranty covers:
Verified manufacturing defects, as determined by DOF Reality.
Coverage scope:
The manufacturer’s warranty applies to the DOF Reality base motion platform only, unless otherwise explicitly stated by the manufacturer. Accessories, attachments, add-ons, and third-party components are not covered unless expressly specified.
What is not covered:
Normal wear and tear, wearing parts (including motors and wheels), improper installation or use, modifications or repairs not performed or approved by the manufacturer, third-party software, and conditions outside the manufacturer’s control.
Commercial use:
Consumer (M-series and H-series) models are not intended for commercial use. Warranty coverage may be denied if products are used commercially.
Warranty claims:
Warranty claims must be submitted in writing and without unnecessary delay. The manufacturer determines whether a claim is covered and the appropriate remedy, which may include repair, replacement parts, or remote assistance.
Shipping and costs:
Customers are responsible for any shipping costs associated with returning defective parts, as required by the manufacturer.
Great Arcade Warehouse does not provide an independent warranty for DOF Reality products but will assist customers in coordinating warranty communication with the manufacturer where applicable.
